**Introduction to Pulse Signals**
A pulse signal is a type of discrete signal that exhibits distinct, non-continuous waveforms over time. Unlike analog signals such as sine waves, which are smooth and continuous, pulse signals have abrupt changes and are often periodic in nature. One of the most common examples is the square wave, which alternates between high and low levels. Pulse signals can be used to encode information or serve as carrier signals in various modulation techniques like Pulse Code Modulation (PCM) and Pulse Width Modulation (PWM). They also play a critical role in digital circuits and high-performance chips as clock signals, providing timing references for operations.
**Pulse Signal Principles**

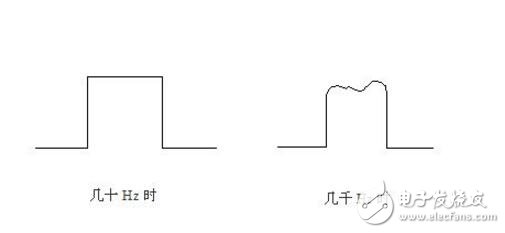

In essence, a pulse signal can be visualized as a waveform with multiple discontinuities across the time axis. These signals are not continuous but instead appear in bursts, making them different from DC or steady-state signals. For instance, a sawtooth wave or a square wave can represent a pulse signal. In digital systems, pulse signals are often used to represent binary states—high (1) and low (0). If we think of water flow, a DC signal would be like a continuously running faucet, while a pulse signal resembles a flickering light, turning on and off at regular intervals.
**Pulse Signal Technology Standards**

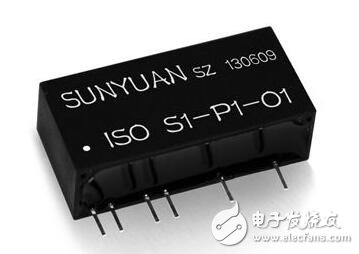

Pulse signals can be generated using simple switching mechanisms. For example, when you turn a flashlight on and off rapidly, it creates a pulse. The frequency of this switching determines the pulse frequency. In practical applications, pulse signals are often transmitted through isolated channels, such as photoelectric isolation, with limited transmission distances—usually under 500 meters. Pulse types vary, including sharp pulses and triangular pulses, which can be created using first-order RC circuits. These circuits help shape the signal by integrating or differentiating the input waveform.
**Introduction to Level Signals**
Level signals refer to the relative strength or magnitude of an output signal compared to an input signal. This is typically expressed logarithmically, such as in decibels (dB), where P = log(P2/P1). In digital electronics, TTL (Transistor-Transistor Logic) level signals are widely used. In this system, +5V represents a logic '1', and 0V represents a logic '0'. TTL signals are essential for internal communication within computer-controlled devices because they are efficient, fast, and compatible with integrated circuits without requiring additional drivers.
**Level Signal and Pulse Signal Generation**
A level signal is a voltage that remains relatively constant over time, provided the input and power supply are stable. Examples include high-level and low-level signals in digital circuits. In contrast, a pulse signal is generated by an oscillating circuit that produces periodic waveforms. These signals are shaped using filtering or other circuitry to form specific pulse patterns. Unlike level signals, which remain static, pulse signals change over time, often repeating between high and low states due to the oscillation process.
**Difference Between Level Signal and Pulse Signal**
1. A pulse signal is characterized by its waveform, which appears as a series of spikes or bursts on an oscilloscope. It can take many forms, such as square, triangular, or sawtooth waves.
2. A level signal refers to the amplitude or magnitude of the signal, regardless of its waveform. Any signal can have different levels depending on its voltage or power.
3. Synchronization level refers to the reference point used to align timing in a system.
4. A synchronous pulse is a pulse signal that helps synchronize an oscillator with an external signal, ensuring consistent timing and operation.
Pulse and level signals both play vital roles in modern electronics, each serving unique purposes based on the application. Understanding their differences helps in designing more efficient and reliable electronic systems.
